Dettagli:
|
| prodotto: | LCD TFT da 1,05 pollici | risoluzione: | 120 x 240 pixel (RGB) |
|---|---|---|---|
| Tipo di visualizzazione: | TFT IPS, normalmente nero | Interfaccia: | SPI a 4 fili |
| Temp. operativa: | -20 ° C a +70 ° C. | Circuito integrato del conducente: | GC9A01 |
| Luminanza di superficie: | 400 cd/m² (tipico) | Direzione di visualizzazione: | 80° in tutte le direzioni |
| Tensione di alimentazione: | 2,5 V – 3,3 V | Dimensioni: | 14,25 mm x 28,60 mm x 1,56 mm |
| Pannello a sfioramento: | Non incluso (Personalizzabile su richiesta) | Conformità: | Compliance REACH e RoHS |
| Evidenziare: | 1.05-Inch TFT LCD Display Module,120x240 TFT LCD Display Module,400 cd/m2 TFT LCD Display Module |
||

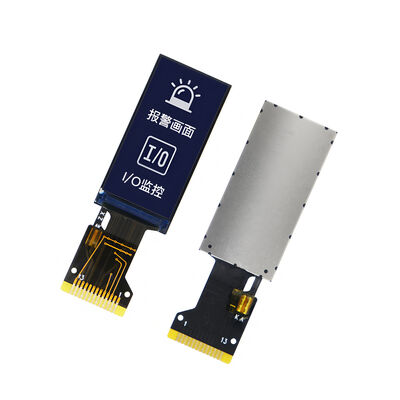

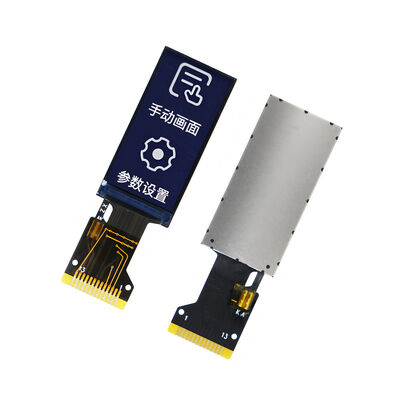

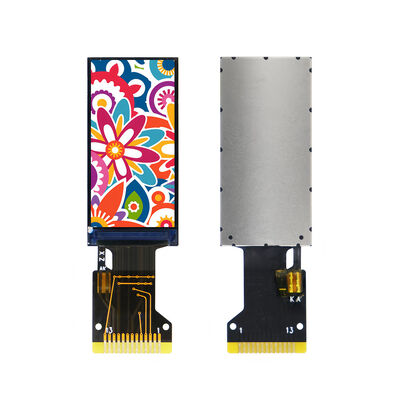

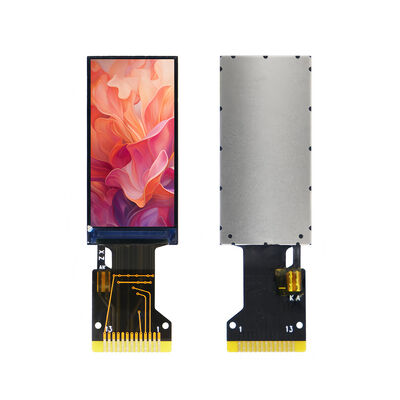

Saef Technology Limited introduces the SFTO105JY-7403AN, a premium 1.05-inch TFT LCD module designed for engineers and product developers seeking a compact, high-performance display solution. With a sharp 120x240 IPS panel and 400 cd/m² brightness, this module delivers exceptional readability in both indoor and outdoor environments. Driven by the GC9A01 controller and featuring a 4-wire SPI interface, it integrates seamlessly into space-constrained embedded systems, IoT devices, wearables, and industrial HMIs.
Crisp, Wide-Angle IPS Display:
Enjoy consistent color and clarity across an 80° viewing angle with a 262K color palette. The IPS technology ensures minimal color shift, making it ideal for multi-orientation applications.
Optimized for Harsh Environments:
Operates reliably from -20°C to +70°C, with storage tolerance from -30°C to 80°C. Designed to maintain performance in demanding conditions, from automotive dashboards to outdoor monitoring equipment.
Low-Power, Efficient Design:
Supports 2.5V–3.3V supply and features a single white LED backlight with typical current of 20mA. Ideal for battery-powered and energy-sensitive applications.
Compact & Easy to Integrate:
Module size is just 14.25mm x 28.60mm x 1.56mm, with an active area of 11.88mm x 23.76mm. The 4-wire SPI reduces pin count and simplifies PCB layout.
No Touch by Default – But Fully Customizable:
This standard model does not include a touch panel. However, Saef offers free or semi-customized options including resistive or capacitive touch overlays (RTP/CTP), tailored interfaces, connectors, and mechanical adaptations to meet your exact design requirements.
We understand the challenges you face: selecting a display that balances size, clarity, power consumption, and environmental robustness. The SFTO105JY-7403AN addresses these needs with:
High Brightness & Optical Performance:
400 cd/m² ensures visibility in brightly lit settings. Contrast ratio of 800:1 and fast response time enhance user experience in dynamic content applications.
Reliable Connectivity & Signal Integrity:
Clear timing characteristics and well-defined pinout (including RESET, D/C, and CS control) ensure stable communication with host MCUs such as STM32, ESP32, and Raspberry Pi.
Quality-Backed & Compliance-Ready:
Each module undergoes stringent inspection per MIL-STD-105E, with AQL limits for major and minor defects. Compliant with ROHS, REACH, and EU environmental directives—ready for European and North American markets.
Extended Durability Testing:
Subjected to high/low temperature operation, thermal cycling, vibration, ESD (±8kV air, ±4kV contact), and drop tests to ensure long-term reliability in real-world deployments.
Expert Support & Customization:
We work directly with engineering teams to provide display customization, technical documentation, and integration support. Whether you need a different interface, modified form factor, or touch functionality, we can adapt quickly.
Fast Prototyping & Volume Supply:
Ideal for both R&D and scaling production. Our manufacturing facility in Shenzhen is equipped to deliver high-quality modules with consistent performance.
Global Logistics & Direct Engineer Access:
Serving OEMs and system integrators across Europe and the USA with reliable shipping and direct technical contact.
Wearable Devices
Portable Medical Instruments
Industrial Control Panels
Smart Home Interfaces
Automotive Displays
IoT Gateways & Sensors
Consumer Electronics
Elevate your product with a display that combines clarity, durability, and design flexibility.
Contact Saef Technology today for datasheets, custom quotes, and engineering samples.
Mechanical Dimensions
![]()
Absolute Maximum Ratings
| Item | Symbol | Min. | Max. | Unit |
| Analog Supply Voltage | VCC | -0.3 | 4.6 | V |
| Operating temperature | Top | -20 | 70 | ℃ |
| Storage temperature | Tst | -30 | 80 | ℃ |
DC Characteristics
| Item | Symbol | Min. | Typ. | Max. | Unit |
| Analog Supply Voltage | VCC | 2.5 | 2.8 | 3.3 | V |
| Input high voltage | VIN | 0.7*IOVCC | - | IOVCC | V |
| Input low voltage | VIL | VSS | - | 0.3*IOVCC | V |
| Output high voltage | VOH | 0.8*IOVCC | - | IOVCC | V |
| Output low voltage | VOL | VSS | - | 0.2*IOVCC | V |
| Input Current | IIN | - | 20 | - | mA |
Backlight Characteristic
| Item | Symbol | Min. | Typ. | Max. | Unit |
| Forward Voltage | VF | 2.9 | 3.0 | 3.1 | V |
| Forward Current | IF | - | 20 | - | mA |
| Power dissipation | Pd | - | 60 | - | mW |
| LED Life Time(25 ºC) | - | 30000 | 40000 | - | Hrs |
| Surface Brightness | - | - | 400 | - | cd/m2 |
Interface Pin Definition
| Pin.No | Symbol | Description |
| 1 | NC | No connect. |
| 2 | NC | No connect. |
| 3 | SDA | SPI interface input/output pin. |
| 4 | SCL | Serial interface clock. |
| 5 | D/C | Display data/command selection pin |
| 6 | RESX |
This signal will reset the device and it must be applied to properly initialize the chip. -Signal is active low |
|
7 |
CSX |
-Chip selection pin Low enable. High disable. |
| 8 | GND | Ground. |
| 9 | NC | No connect. |
| 10 | VCC | Power supply for Analog. |
| 11 | LED-K | Backlight cathode |
| 12 | LED-A | Backlight anode |
| 13 | GND | Ground. |
Optical Characteristics
| Item | Symbol |
Measuring Conditions |
Min. | Typ. | Max. | Unit | |
| Response Time | Tr+Tf |
θ = 0o φ = 0o |
25 oC |
- |
30 | 40 |
ms |
|
Viewing Angle |
θ |
φ = 0o | 25 oC | - | 80 | - |
Deg |
| φ =180o | 25 oC | - | 80 | - | |||
|
θ |
φ = 90o | 25 oC | - | 80 | - | ||
| φ =270o | 25 oC | - | 80 | - | |||
| Contrast Ratio | CR | - | 25 oC | 800 | - | - | |
|
Color of CIE Coordinate |
White | X | 25 oC | 0.304 | 0.306 | 0.308 |
- |
| Y | 25 oC | 0.325 | 0.327 | 0.329 | |||
| Red | X | 25 oC | 0.608 | 0.610 | 0.612 | ||
| Y | 25 oC | 0.331 | 0.333 | 0.335 | |||
| Green | X | 25 oC | 0.279 | 0.281 | 0.283 | ||
| Y | 25 oC | 0.531 | 0.533 | 0.535 | |||
| Blue | X | 25 oC | 0.144 | 0.146 | 0.148 | ||
| Y | 25 oC | 0.136 | 0.138 | 0.140 | |||
|
Transmittance (with polarizer) |
5.09 | % | |||||
